Secure Barrier - ClearVu® Security Fence

Safeguards Technology’s ClearVu™ Security Fence has been engineered as a security barrier which disappears into its surroundings. It is an ideal solution to protect your critical assets, without distracting from the existing environment.

Our newest and most innovative fence provides a high level of security, while allowing for unobstructed views of the environment inside the perimeter. With a large variety of coatings to choose from, the ClearVu™ Security Fence can be colored to match your environment. This barrier is a visually pleasing and cost-efficient alternative to traditional fencing.

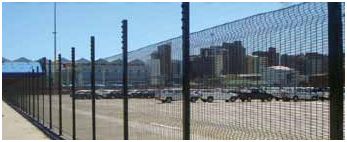

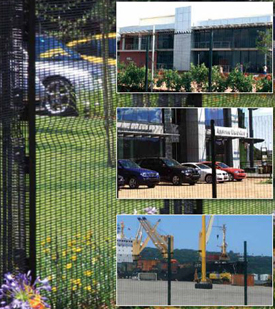

ClearVu® Security Fence

Features & Benefits

• Anti-climb/Anti-cut: Apertures too narrow for foothold and bolt cutters
• Vandal Proof: All fixtures are bolted to the inside of the fence
• Highly Transparent: From a distance, horizontal wire rods virtually disappear
• Rigidity: Reinforced ribs make heavy support barriers redundant
• Flush Finish: System provides a flush panel post finish
• Polymeric Coating: 4 Standard finish colors (custom also available)

Specifications

• Post Options:
  [fitted w/end caps + 250mm, 30x3mm angle]
  • Taper: 1¼-3½ in./3 in. depth
    (85-45mm/85mm depth)
  • Mesh: 3-6 in./6 in. depth
    (75- 50mm/150mm depth)

• Panel Heights: [4mm - high tensile wire/8-gauge]
  • from 6 to 10 ft.
• Panel Width: 7 ft.
• Aperture Size: 3 x 5 in. (76.2 x 12.7mm)
• Foundation: 20in. deep x 16 in. sq./15Mpa concrete
  (500mm deep x 400mm sq./15Mpa concrete)
• Coating Options:
  • Line galvanized (standard)
  • Line galvanized w/alu-galv coating (corrosion resistant)
  • Line galvanized w/deep etch primer & epoxy enamel
  • Line galvanized w/polymeric 8k coating (corrosion proof)
• Topping Options: Razor mesh panels, Razor wire coils, Shark-tooth spikes
