Secure Barrier - Rapid Deployment Barrier

The system is designed to provide rapid deployment — 75 meters (246 ft.) to 1000 meters (3,280 ft.) of barbed tape/razor wire coils which can be deployed in seconds.

Depending on which model deployment barrier is desired, trucks or humvees may be used to tow/deploy the units.

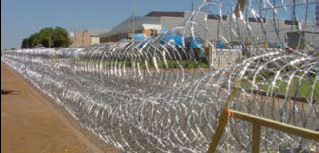

Rapid Deployment Barrier

Features & Benefits

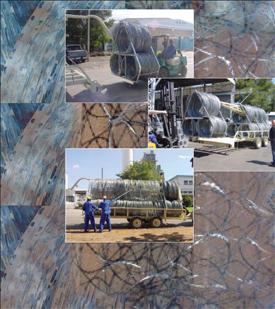

Barriers are fully recoverable and reusable. Equipment is
supplied to upload and recompress the barrier into modules – simple to handle and compact to store. A single carrier unit can be quickly refilled to drop many miles of barrier in a short period of time.

• Semi-manual or automatic motorized collector
• Standard trailers or Load Lifter Style (with forklift)
• Standard or Humvee tires
• Customized paint to fit any requirements
• Three or six coil deployment
• Unit size varies upon model selection

Application

Applications include crowd control and riot prevention,
prisoner short term detention, site security, augmented
fence perimeter security, and quick site security protection.

Specifications

HD-300*

• Deploys 75-300 meters (246–984 feet) in 20-30 seconds
• Refillable
• Approximate weight of trailer excluding barrier: 5,291 lbs. empty; 9,259 lbs. loaded
• Rapid Barrier Modules: Trailer capacity is four modules. Each module is 75 meters (246 feet) long and weighs 992 lbs.
• Barrier collects with reversing/manual operation which is assisted with the electric collector wheel
• Electric winch barrier compactor supplied
• Shipping: Trailers shipped (in knockdown condition) plus 300 meters (984 feet); barrier in 20 foot container.

*HD-300 specifications are presented here for conceptual understanding only. Each model varies in size and capabilities. Each Rapid Deployment Barrier System can be customized to meet the customer’s requirements.
